PyAnsys is an ecosystem of Python libraries that provide access to Ansys simulation capabilities.
Documentation challenges
The main challenges we face in PyAnsys documentation are:
Ensure a unified user experience across multiple libraries
Massive APIs that update faster than docs
Users and developers lose hours digging through docs
Manual maintenance of changelogs and API docs
Poor discoverability and search experience

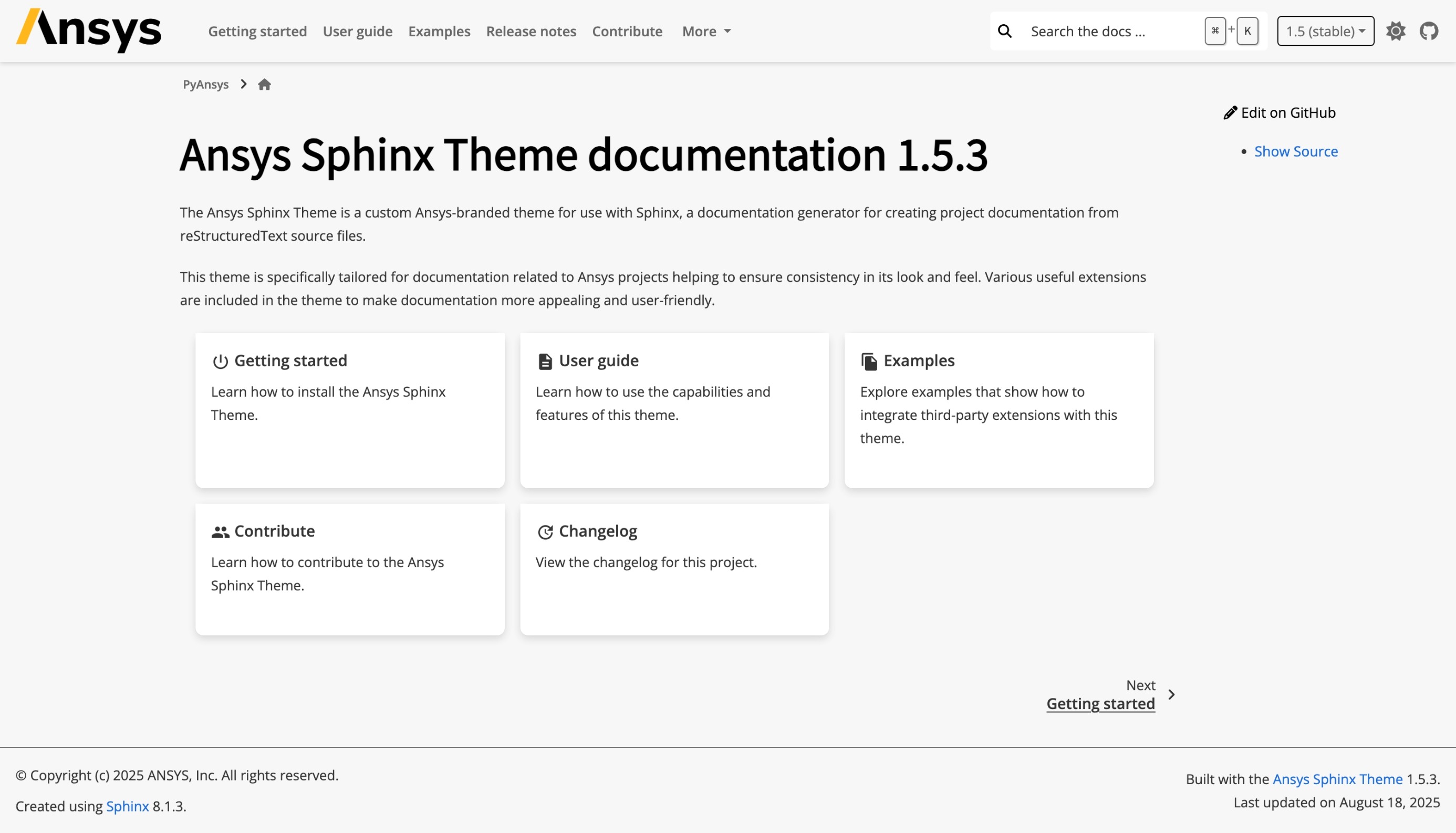

Unifying the user experience
API documentation: the problem
How can we ensure that our API documentation is always up-to-date, easy to navigate, and visually appealing?
Manually syncing with source code is error-prone
Large APIs can lead to overwhelming documentation
Users struggle to find relevant information quickly
Diffs can be difficult to track
Link documentation to source code for quick-reference
API documentation: the solution
Automate the process of generating API documentation and present it in a single-page per object format:
Docstrings are the source of truth
Documentation pages are auto-generated by parsing source code
Jinja is used to create templates for API documentation
API documentation is presented in a user-friendly format
flowchart LR
A[Write docstrings] --> B[Parse documentation] --> C[Hydrate templates] --> D[Render docs]
%% Styling: white nodes, black border & text
classDef white fill:#ffffff,stroke:#000000,color:#000000;
class A,B,C,D white;

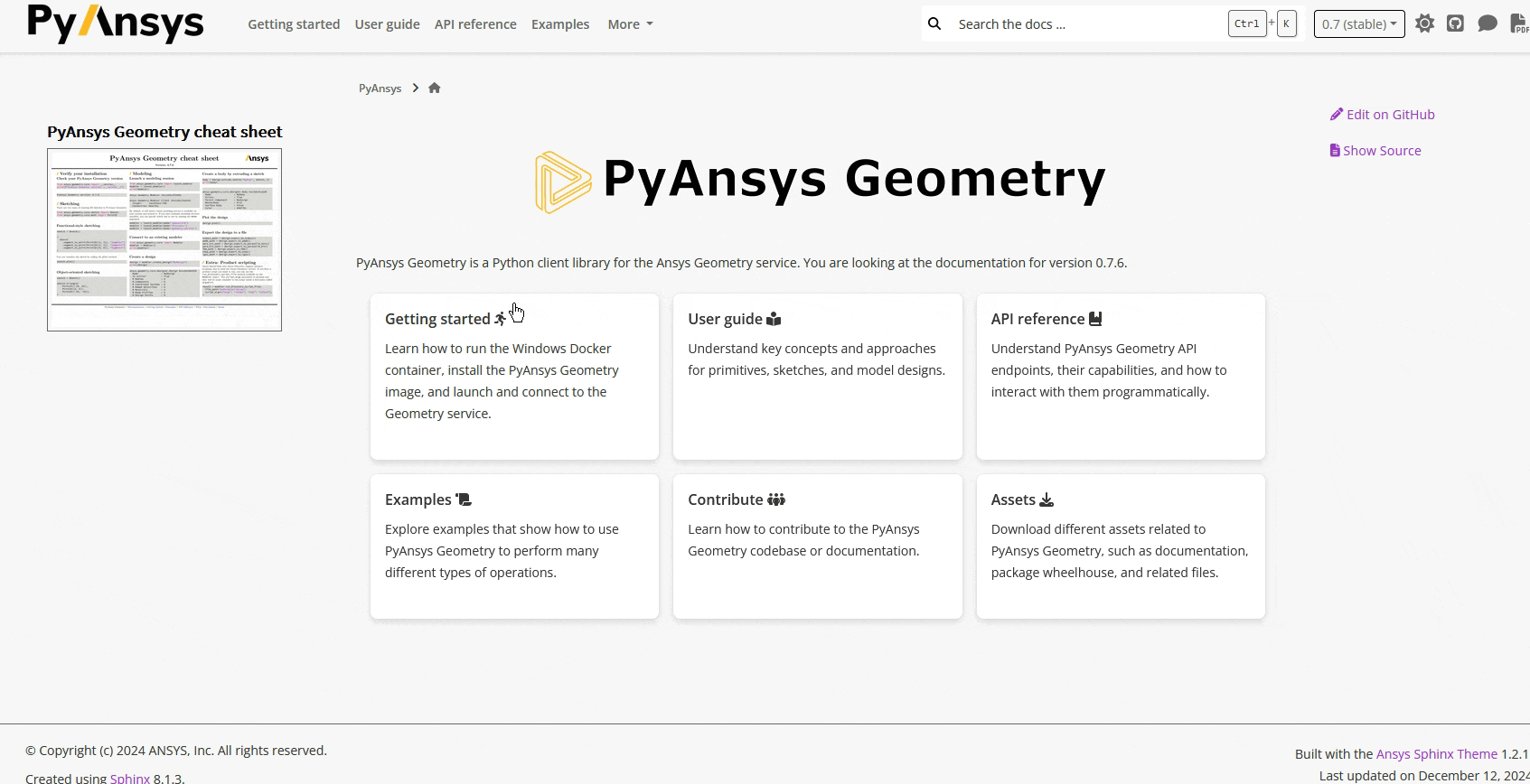

API documentation: the result

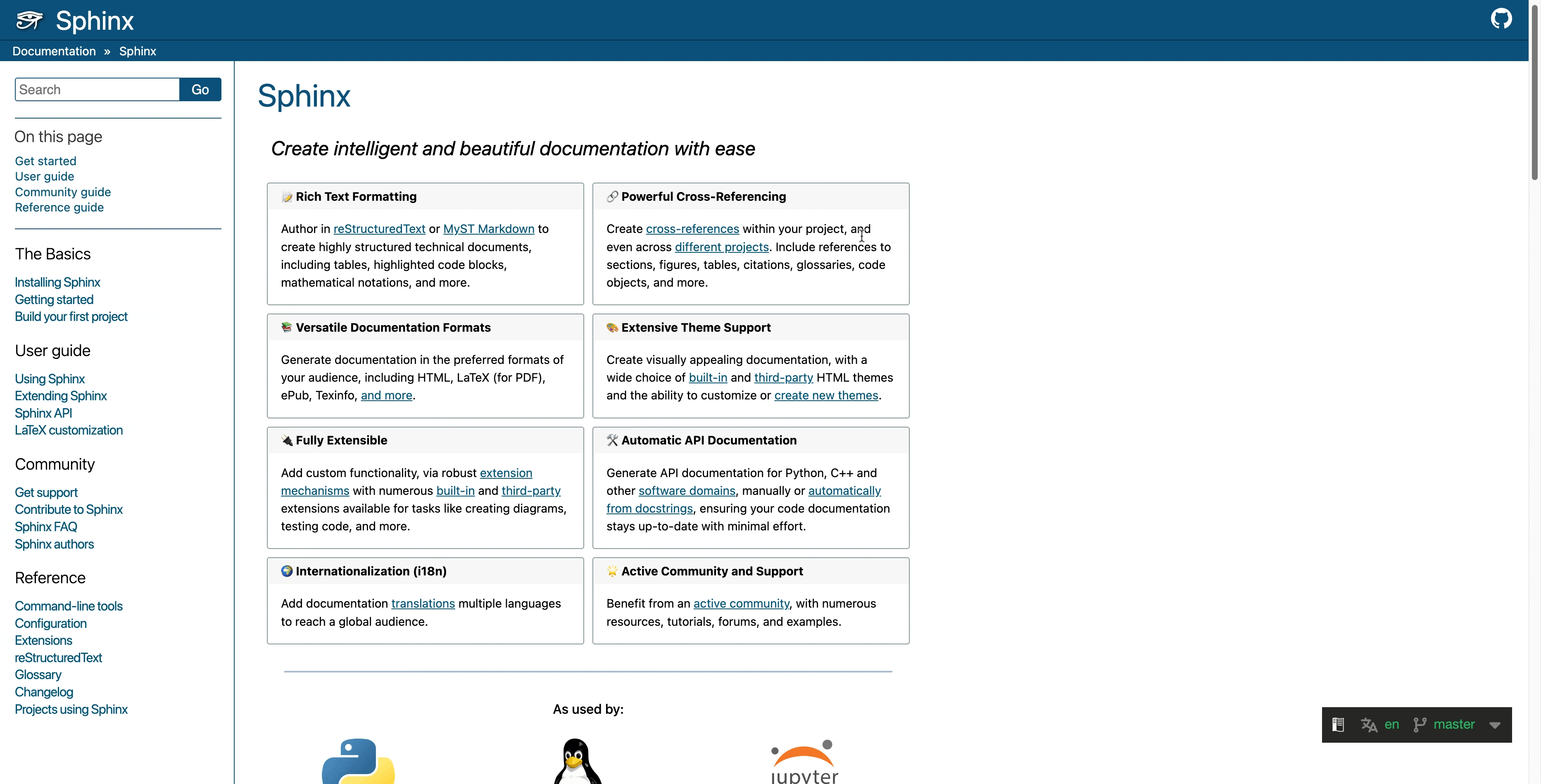

Search experience: the problem
The default search in Sphinx is slow, not user-friendly, and lacks real-time preview.
Search experience: the solution
Take advantage of the PyData Sphinx Theme architecture to override the search bar component.
Parse the documentation to extract chapters and sections
Generate a JSON index of all documentation content
Replace default Sphinx search with a custom search component

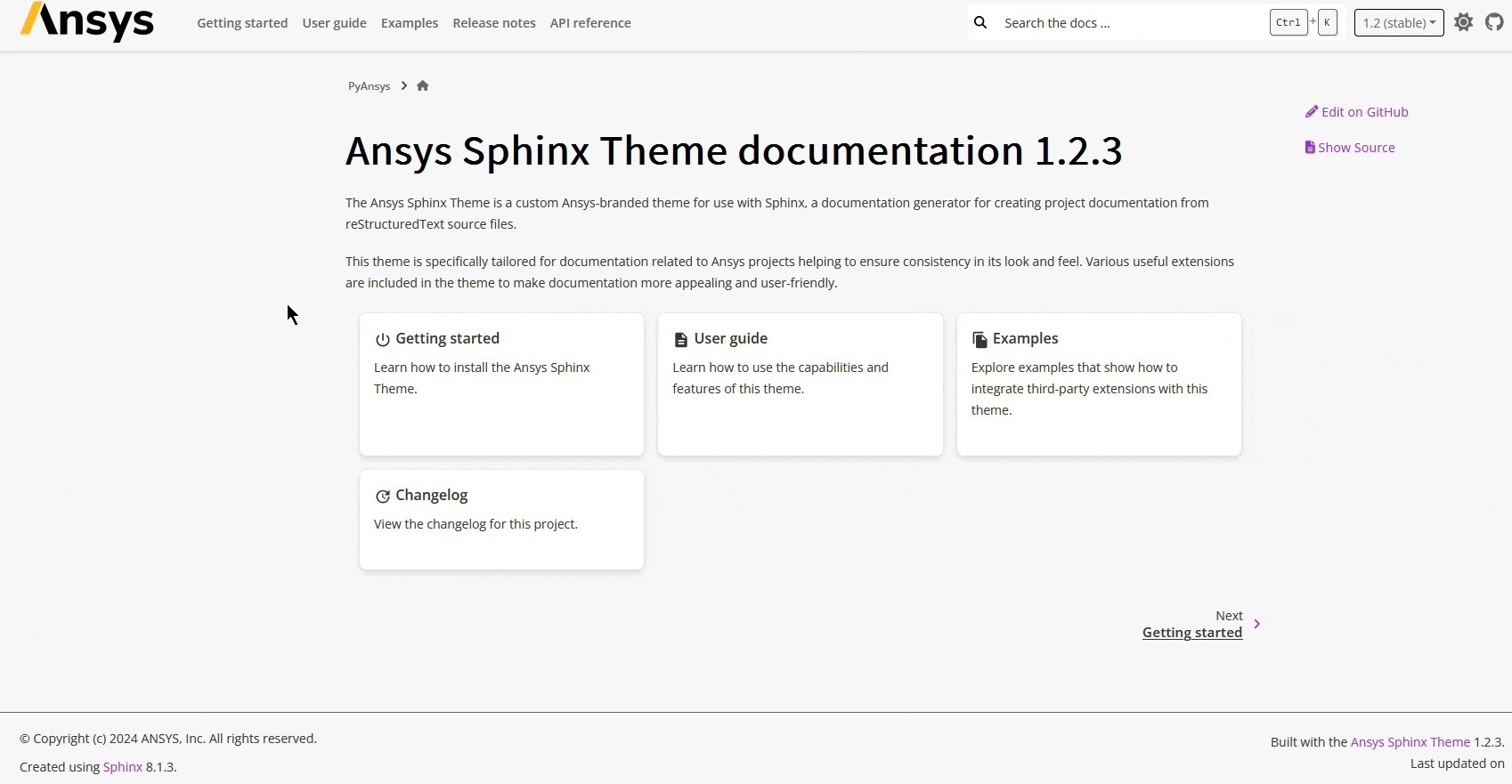

Search experience: the result
Changelog: the problem
Generating changelog and release notes has the following challenges:
Manually maintaining changelogs is error-prone
Difficult to keep track of changes across multiple libraries
Presenting changelogs in a user-friendly format is challenging
Changelog: the solution
Automate the whole process by using Towncrier and linking it with CI/CD pipelines:
Conventional commits are enforced
Changelog fragments are generated from pull-request titles
Fragments retain the pull-request type and number
Changelog is rendered during a release at CI/CD time
Fragments get removed in main branch after a release
flowchart LR
A[Convential commits] --> B[Fragment generation] --> C[Changelog rendering] --> D[Fragments cleanup]
%% Styling: white nodes, black border & text
classDef white fill:#ffffff,stroke:#000000,color:#000000;
class A,B,C,D white;

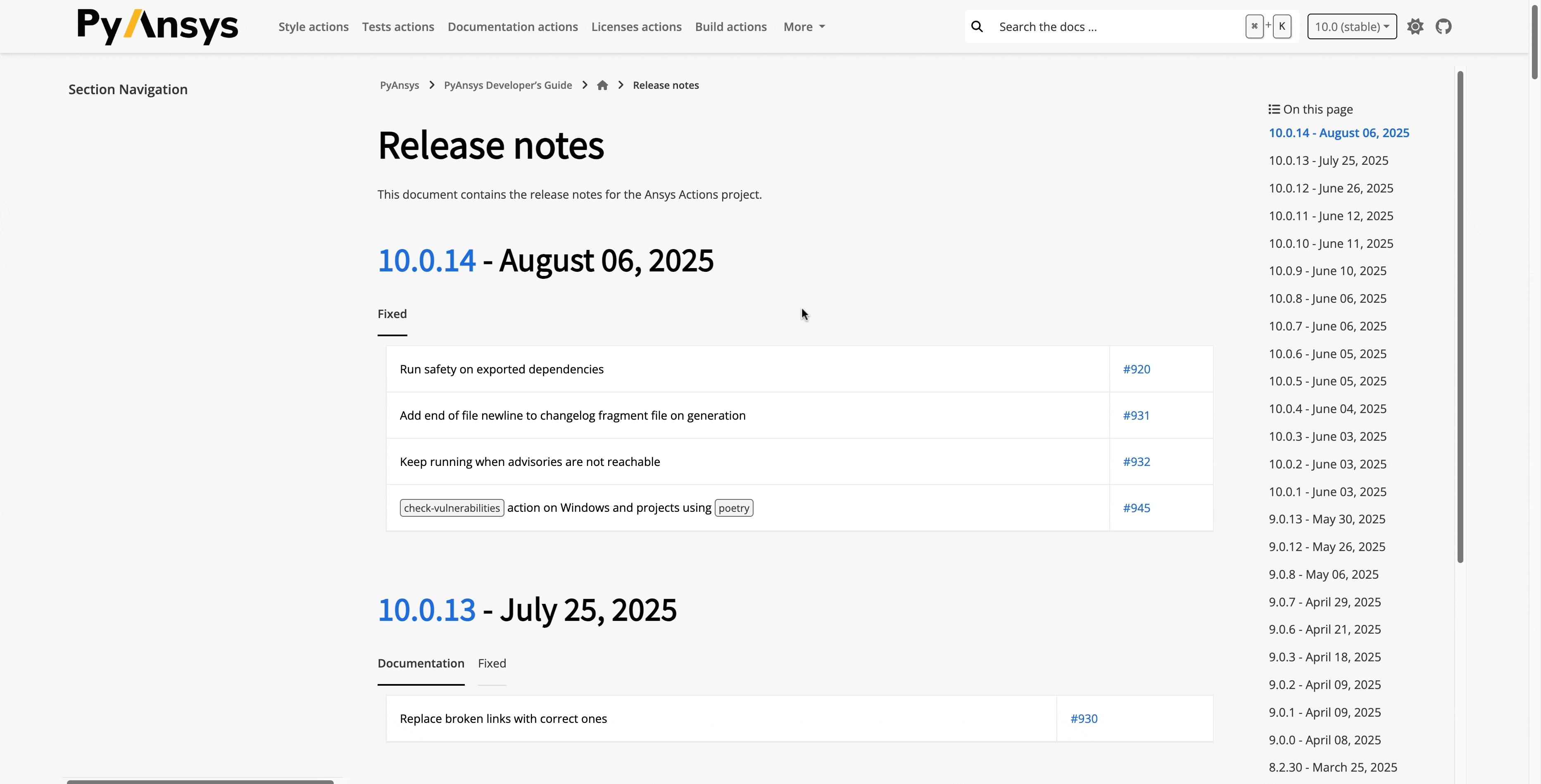

Changelog: the result

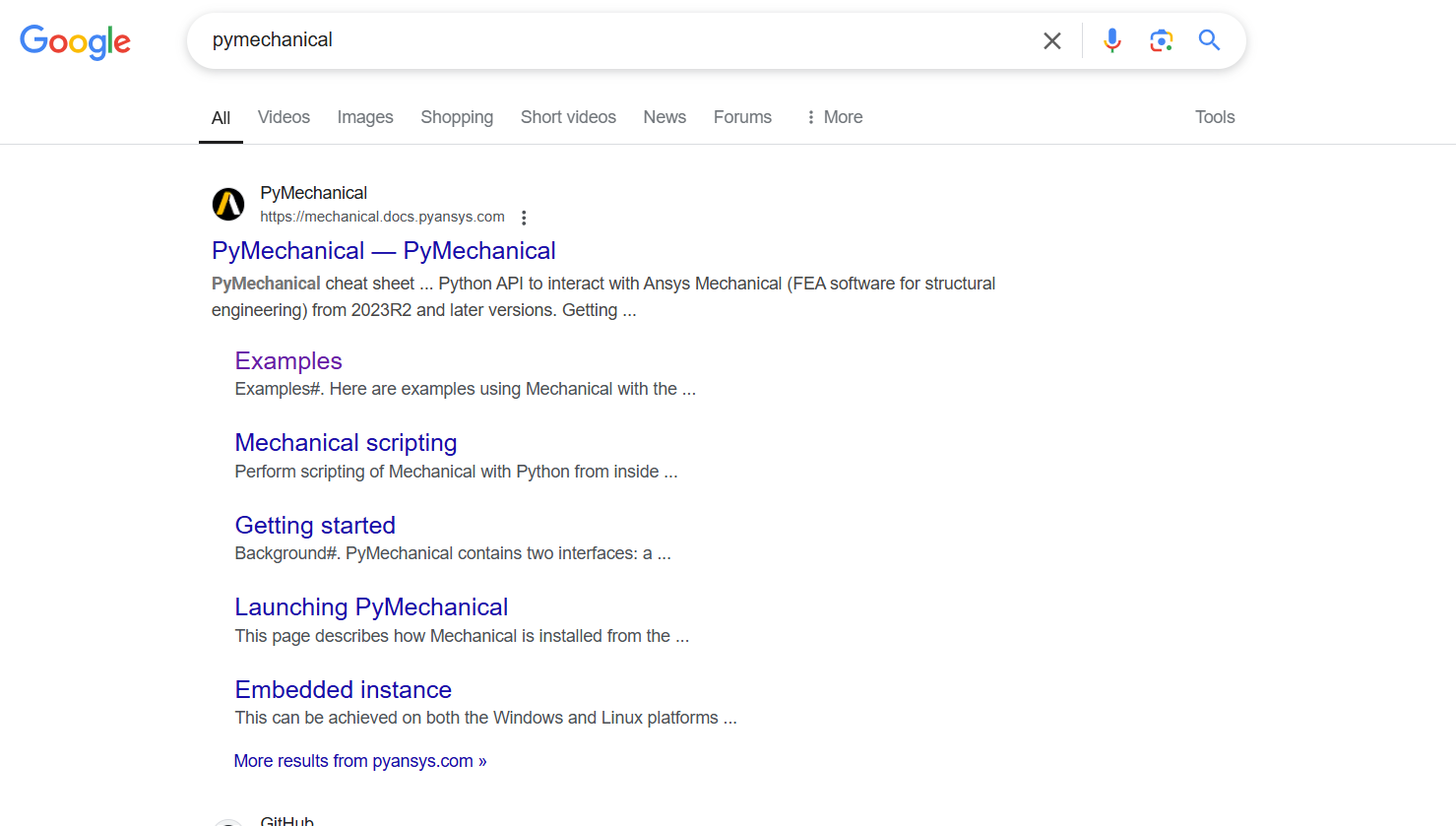

SEO optimization: the problem
After LLM became popular, main search engines stopped indexing content that looked auto-generated.
Google stopped indexing our pages
Multi-version documentation can be challenging to index
Only the stable documentation should be indexed
SEO optimization: the solution
Take advantage of search engine tools and other tips:
Use hyphens rather than underscores when naming files
Ensure short and descriptive URLs
Automatically generate a sitemap.xml file
Automatically generate a robots.txt file
Use tenant accounts to automated indexing of search console panels

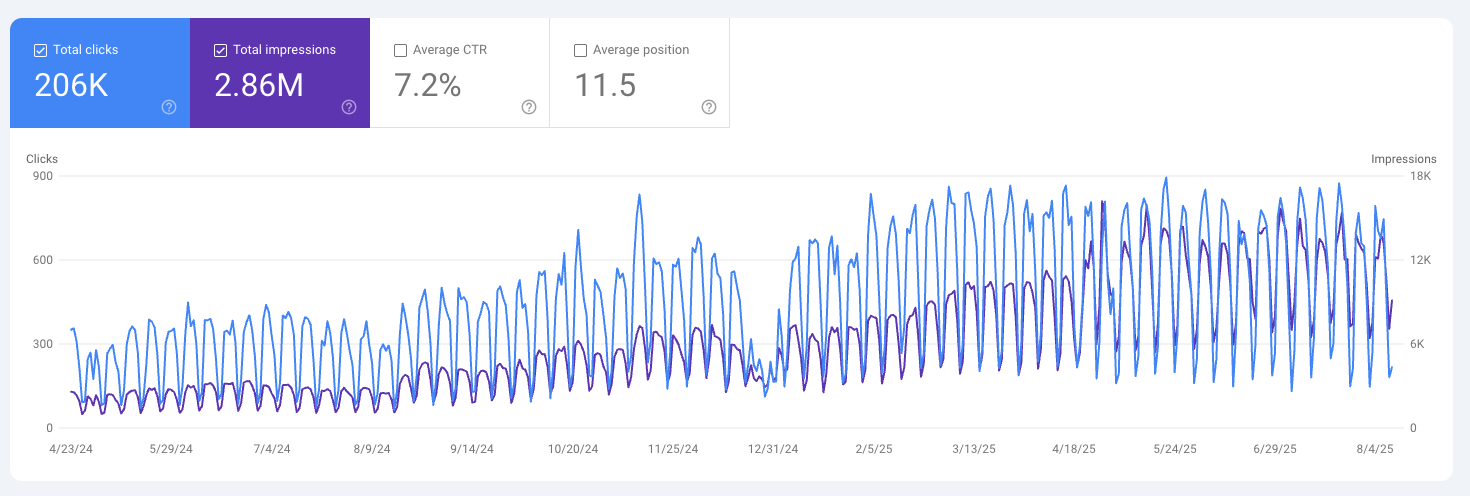

SEO optimization: the result
Conclusion
Despite facing various challenges, the effort of documenting a big project can be eased by:
Using centralized themes from which common settings are applied
Ensuring a single source of truth for content generation
Automating rendering processes as much as possible
